Used YTP4213‑SB Horizontal Flat Glass Tempering Furnace

Product Introduction

YTP4213‑SB horizontal flat glass tempering furnace is standard flat tempering model from Yuantu YTP series. Equipped with SB flat quenching wind grid, specially for flat tempered glass mass production, widely used in building, furniture, home‑appliance glass deep‑processing industry.

This second‑hand machine is fully inspected and refurbished. Key components tested & calibrated. Ready for container shipment for overseas market. Cost‑effective solution for new glass factory or capacity expansion.

Model explanation: 4213: Max glass size 4200×1300mm; YTP: Pass‑through horizontal tempering furnace; SB: Standard flat tempering, for flat glass only, not for bent glass.

Technical Specifications

Item Specification

Model YTP4213‑SB

Type Horizontal radiation heating flat glass tempering furnace

Max glass size 4200 × 1300 mm

Min glass size 300 × 100 mm

Glass thickness range 3‑19 mm (best output 5‑12 mm)

Applicable glass Clear float glass, tinted glass, extra‑clear glass, ordinary Low‑E glass, silk‑screen glass

Capacity (5 mm glass) 110‑130 ㎡/h

Total power 560‑600 KW

Required power supply ≥630 KVA

Control system PLC + touch screen, multi‑zone PID temperature control, fault diagnosis

Roller table High‑strength ceramic rollers, sectional variable‑frequency drive

Quench grid SB flat wind grid (flat tempering only)

Overall dimension 24500 × 3200 × 2700 mm

Total weight 42‑46 tons

Power 380V 50Hz, can adapt to 415‑480V 60Hz for export

Production standard GB15763.2, EN12150, ANSI Z97.1

Machine Composition

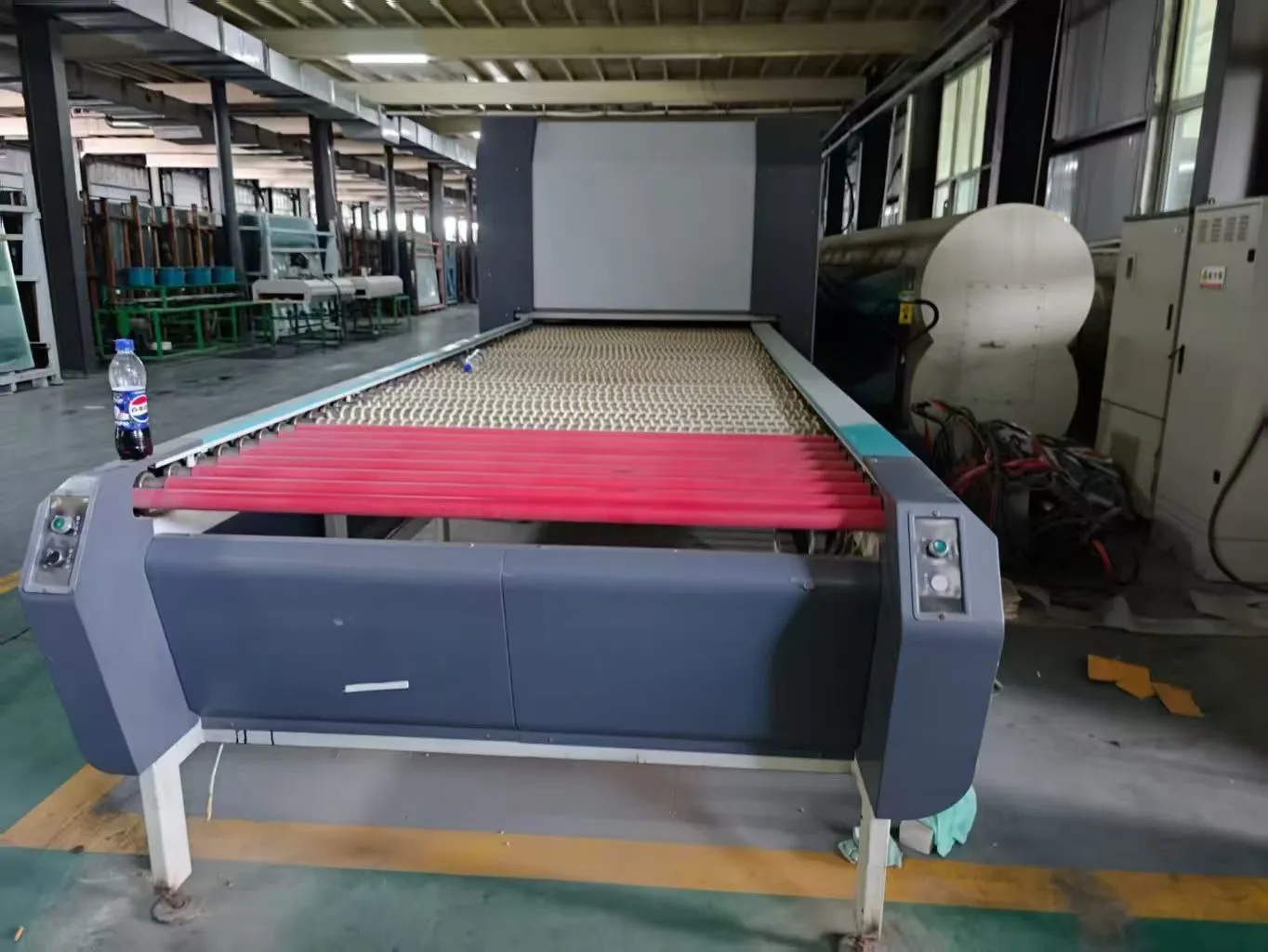

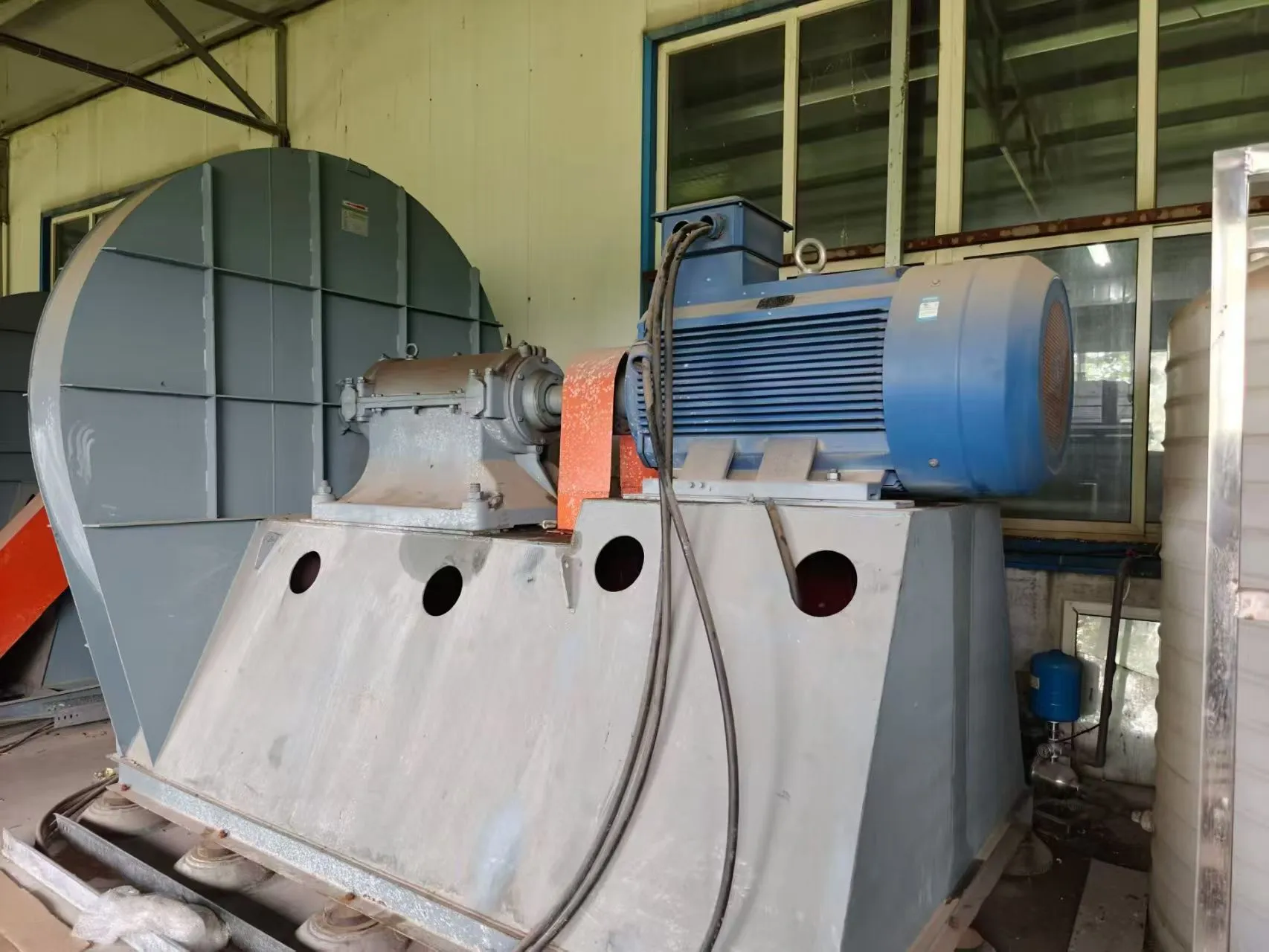

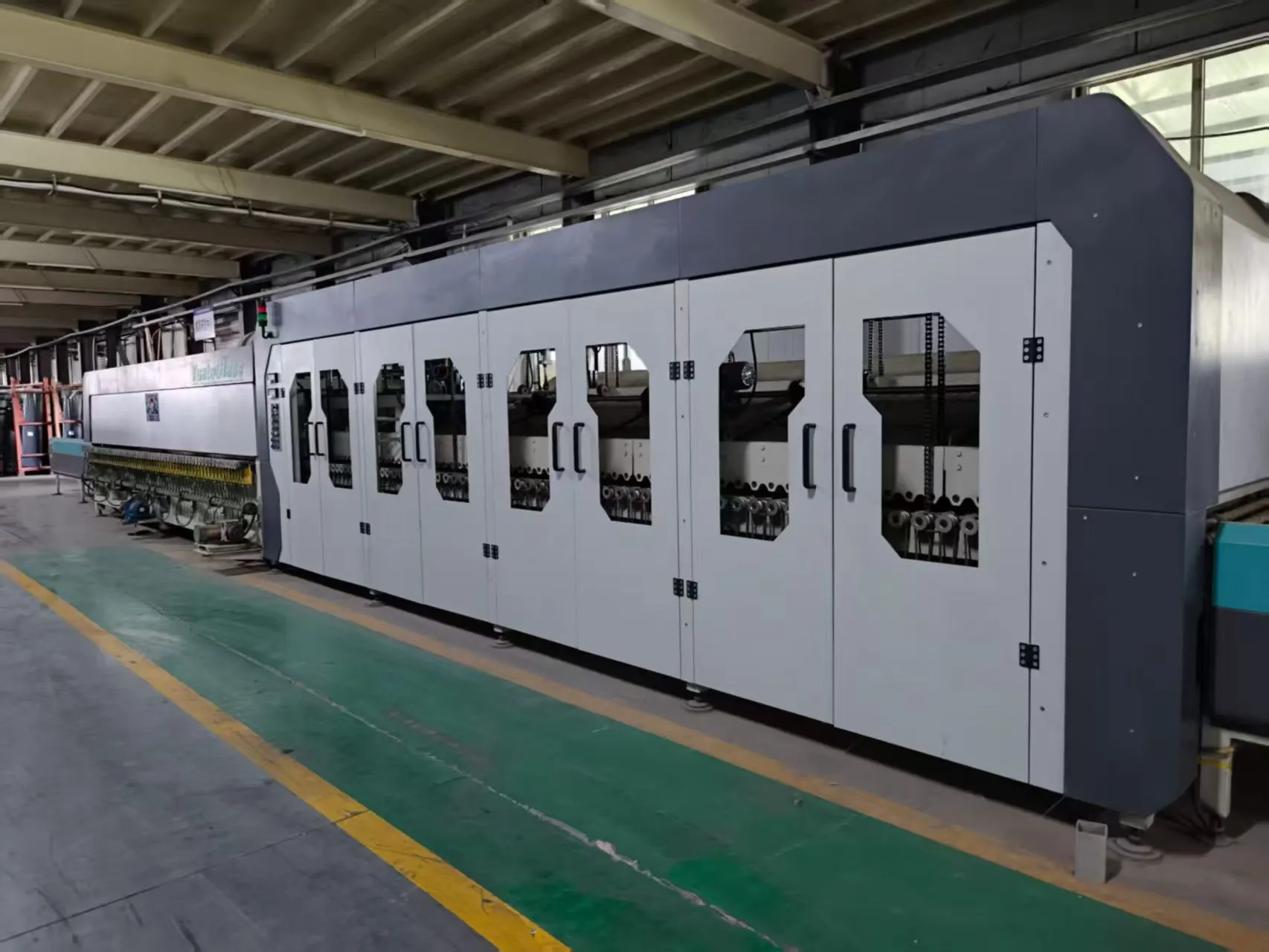

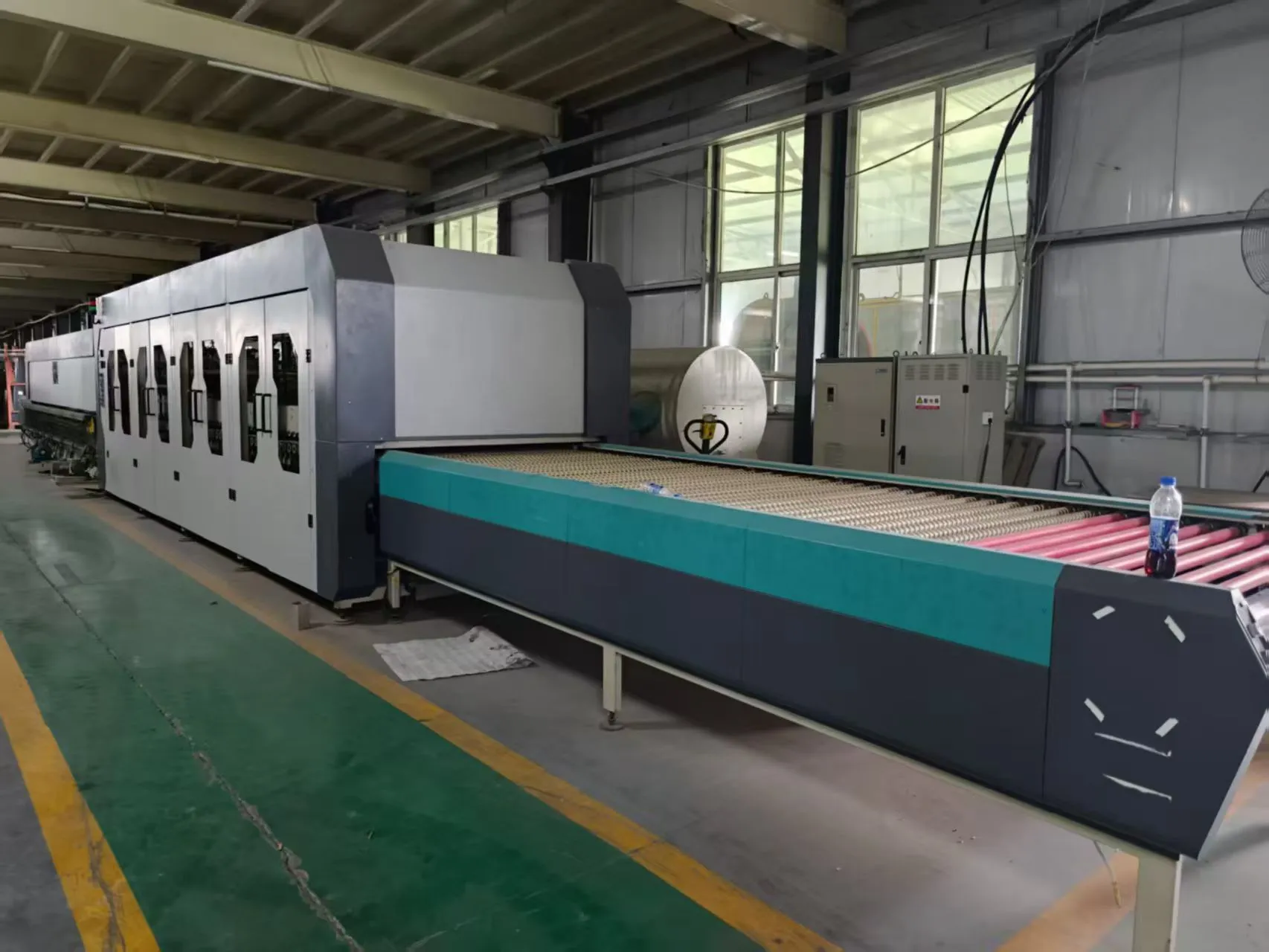

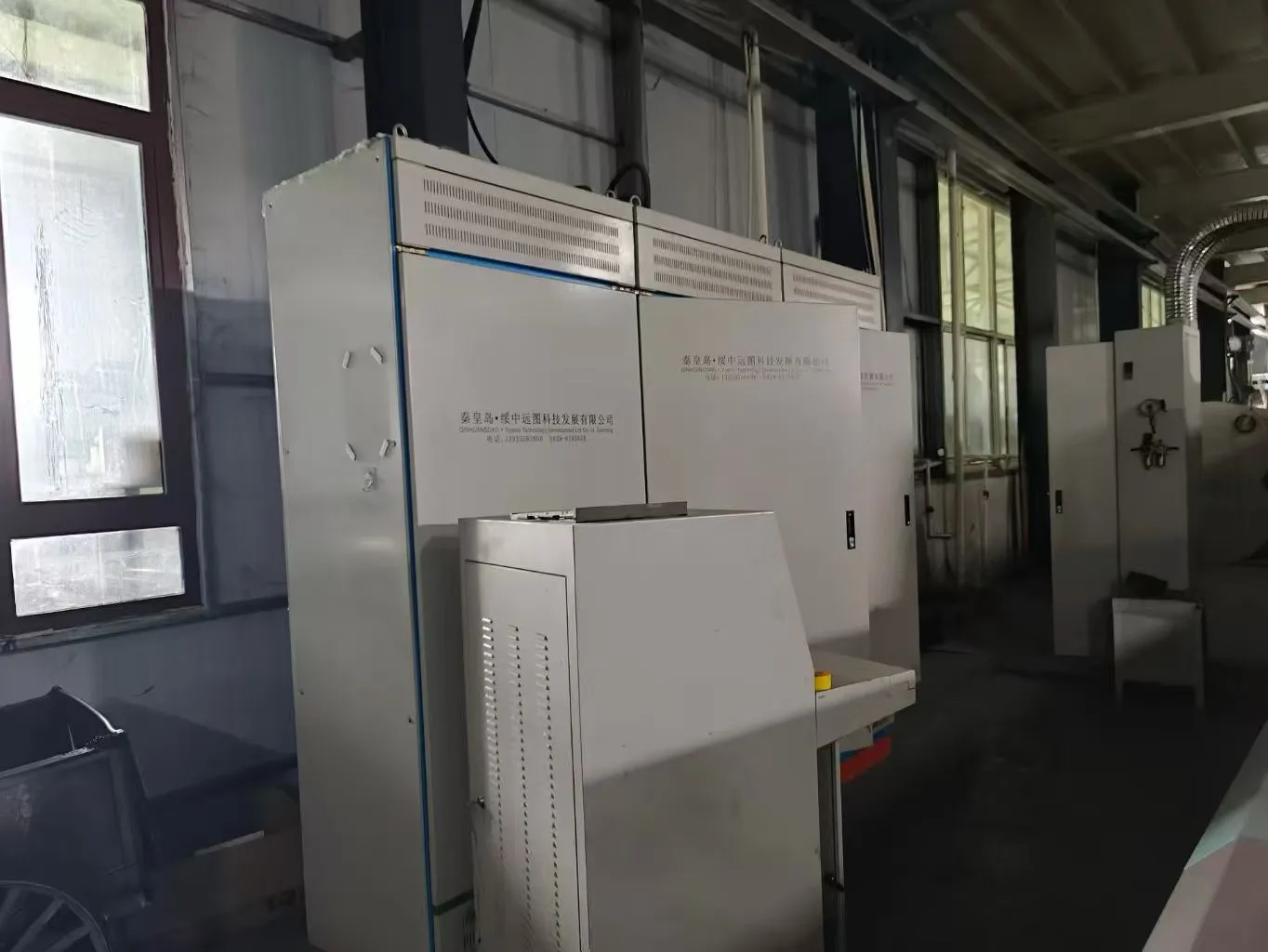

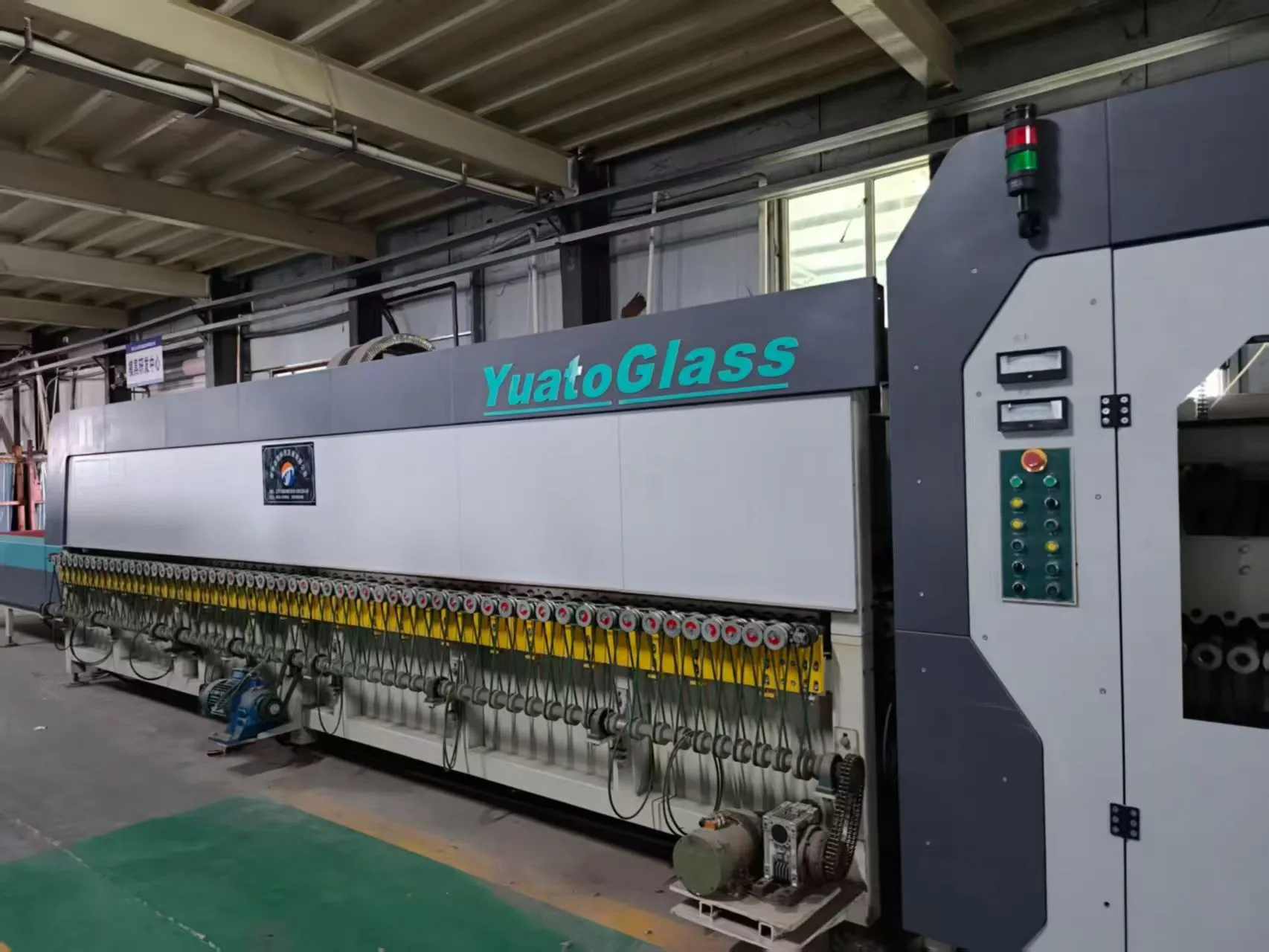

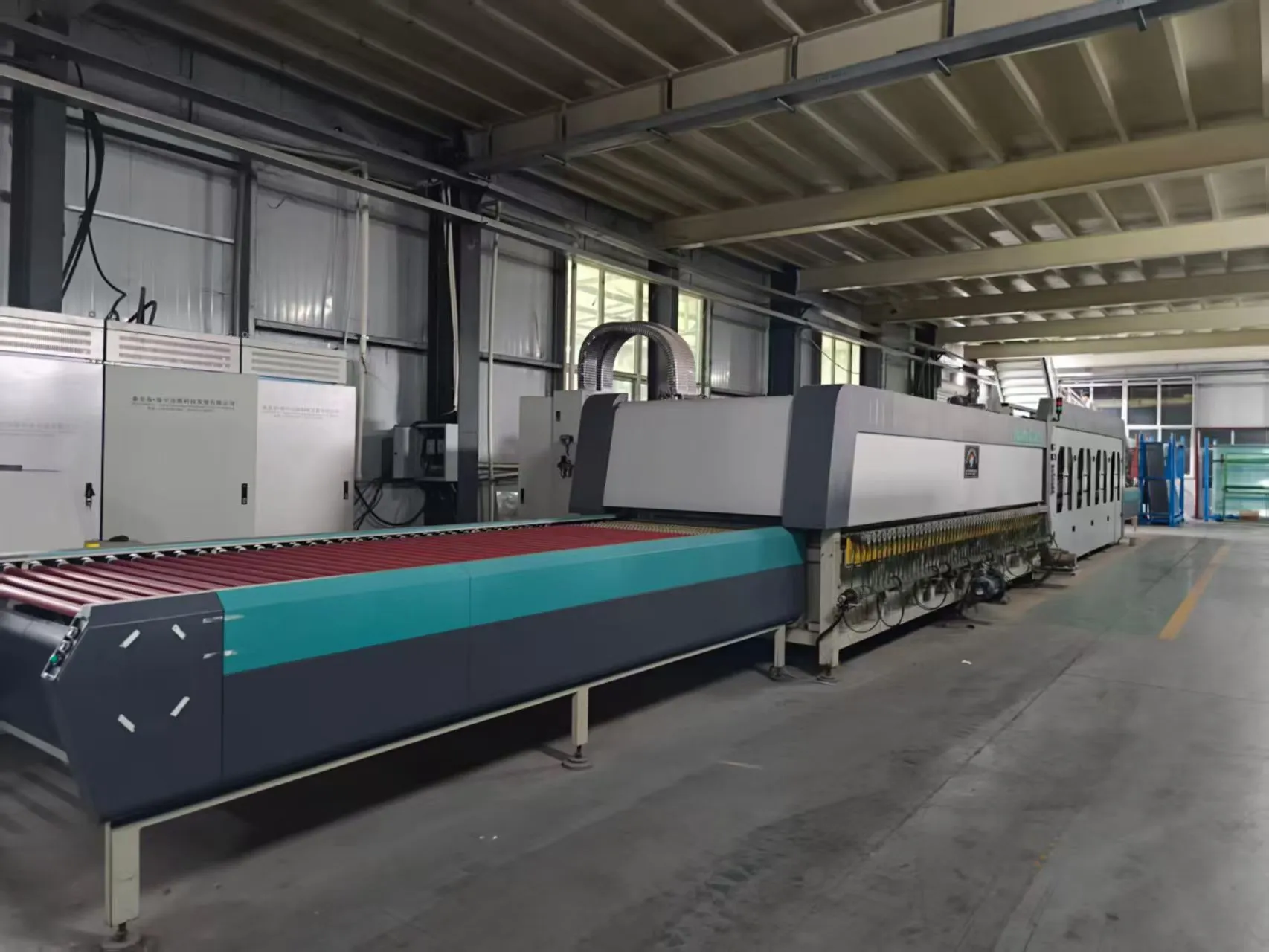

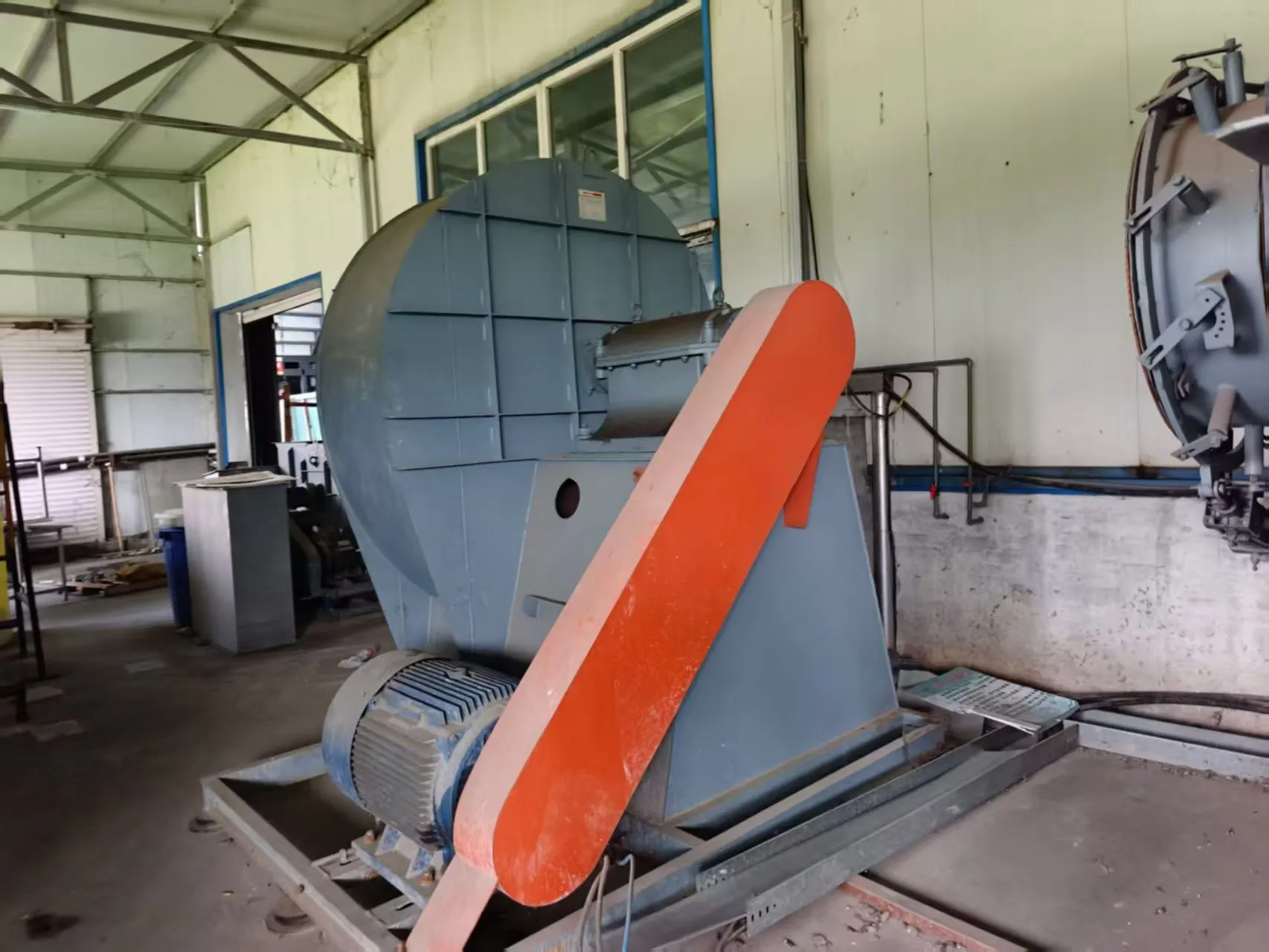

Loading table → Heating furnace → Quenching section → Unloading table; High‑pressure fan group, air storage tank, electric control cabinet, operation console.

Refurbishment & Inspection Items for Export

1. Ceramic rollers full inspection, run‑out correction, remove cracked or chipped rollers.

2. Heating elements checked & replaced to guarantee uniform temperature across zones.

3. Wind grid nozzles cleaned, wind chamber resealed, fan impeller wear inspection.

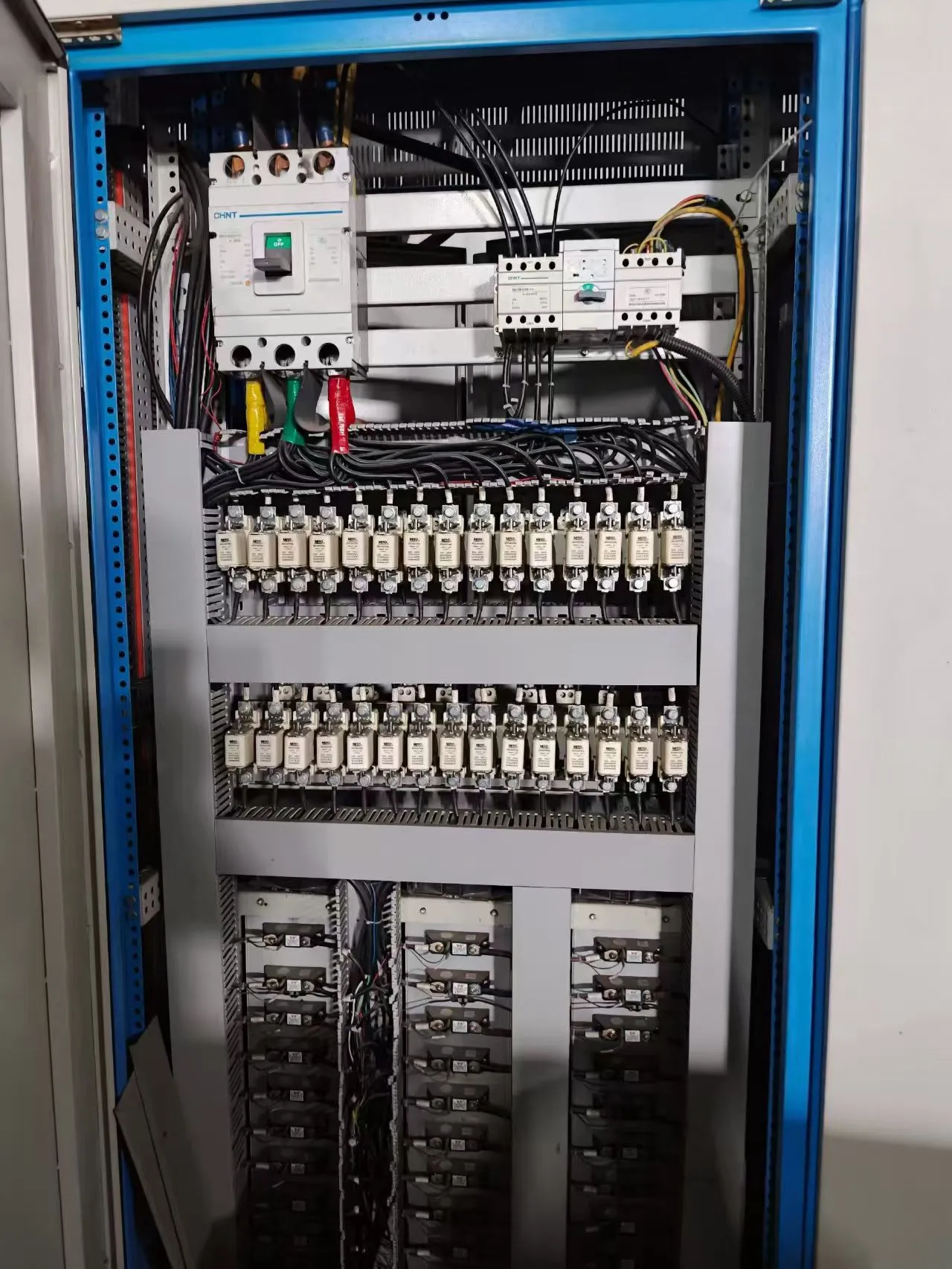

4. PLC, touch screen, SCR modules test, electrical wiring reorganized.

5. Full power test run, produce sample tempered glass to check grain quality & flatness.

6. Mark split points for container loading, suitable for multiple 40HQ containers.

Application

Building door & window glass, shower room glass, furniture glass, home appliance decorative glass, architectural flat tempered glass production.

Our Service

Machine disassembly & container loading guidance available. Overseas installation & commissioning technical support can be arranged. Test‑run video & real‑site photos are available upon request. All data for reference only, subject to nameplate and actual machine performance.
