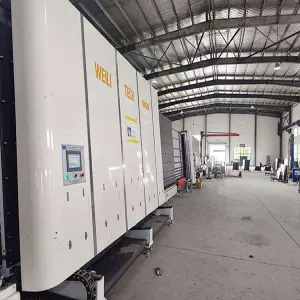

1. Product Introduction of Fully Automatic Online Inflatable Insulated Glass Production Line
If you run a glass deep processing factory that produces insulating glass for doors, windows and curtain walls, you must know how tough traditional IGU production can be. Most old-fashioned insulating glass lines work in separate steps. Workers need to finish glass washing, spacer assembly, gas filling and pressing manually or semi-automatically. This scattered production method leads to unstable gas filling concentration, uneven pressing, high defective rates and low daily output. These problems always restrict your factory’s production capacity and product competitiveness in the energy-saving glass market.
This is why the fully automatic online inflatable insulated glass production line has become the core upgrade equipment for modern glass factories. It is an all-in-one turnkey automated production system specially designed for high-performance insulated glass manufacturing. Different from traditional segmented IGU equipment, this integrated line combines glass washing and drying, automatic spacer positioning, online inert gas inflating, precise assembly and final pressing into one continuous automatic workflow. It completely reduces manual intervention, standardizes every production step and greatly improves the overall quality of finished double-glazing and triple-glazing products.
We are Hubei Changheng Special Purpose Vehicle Sales Co., Ltd., established in June 2018 and located in the Cross-border E-commerce Industrial Park of Zengdu District, Suizhou City, Hubei Province, a famous national machinery and equipment trading cluster. With a registered capital of RMB 3 million, we operate as a comprehensive commercial service enterprise covering equipment recycling, professional inspection, precision refurbishment, equipment sales, flexible leasing, technical maintenance and global import and export trade.
After years of steady development in the mechanical circulation industry, we have expanded our business from traditional special vehicles, sanitation equipment and construction machinery to full-chain trading of high-quality used glass deep-processing equipment. We accurately connect upstream equipment resources and downstream factory demand, providing cost-effective refurbished fully automatic online inflatable insulated glass production lines and one-stop supporting services for architectural glass processors, curtain wall material enterprises, photovoltaic glass factories and door and window glass workshops worldwide. Every production line we deliver has passed strict functional testing to ensure stable and efficient long-term industrial operation.
2. Working Principle of Online Inflatable Insulated Glass Production Line
Many factory owners think integrated automatic IGU production lines have very complex working logic and difficult daily operation. In fact, the working principle of our fully automatic online inflatable insulated glass production line is simple, orderly and fully optimized for mass industrial production. Ordinary workers can master the basic operation and daily supervision work after simple training.
The whole production workflow follows five coherent automatic stages. First, automatic glass cleaning and drying. Raw glass is automatically fed into the high-precision washing module. The equipment uses circulating clean water and high-pressure air drying system to completely remove surface dust, oil stains and impurities, ensuring a clean and dry glass surface for subsequent bonding and gas filling.
Second, automatic spacer positioning and assembly. The line automatically conveys and positions aluminum spacers or warm-edge spacers, realizing accurate fitting with the glass panel. It avoids offset and dislocation problems caused by manual assembly, laying a foundation for uniform sealing and stable gas storage.
Third, real-time online inert gas inflating. This is the core upgrade of our inflatable production line. Different from offline gas filling equipment with low efficiency and unstable concentration, our line completes argon or nitrogen filling in the online assembly process. The intelligent gas control system monitors and adjusts gas flow in real time to ensure uniform and standard gas concentration inside the insulating glass cavity.
Fourth, precise automatic pressing and shaping. After gas filling is completed, the double-layer or triple-layer glass panels are automatically aligned and pressed with balanced pressure. The pressing process is stable and uniform, ensuring tight fitting of glass and spacers without gaps or deformation.
Fifth, continuous finished product output. The finished insulated glass products are automatically conveyed out of the production line. The whole process runs in a closed continuous loop without frequent manual handling and repeated positioning, realizing truly automated assembly line production.
3. Core Functional Features and Production Advantages
Compared with traditional semi-automatic insulating glass production lines and offline gas filling equipment, our fully automatic online inflatable insulated glass production line has obvious advantages in automation level, production efficiency and finished product stability. All functional upgrades are designed to solve actual production pain points of glass processing enterprises.
First, integrated one-stop production. The line integrates washing, drying, spacer assembly, online gas filling and pressing. It does not need to transfer glass between multiple independent machines, greatly shortening the production cycle and avoiding secondary pollution and damage during transfer.
Second, stable and standard gas filling effect. The online real-time inflatable system supports precise gas concentration control. It effectively solves the problems of insufficient gas content, uneven concentration and easy gas loss of traditional offline filling processes, ensuring excellent thermal insulation and sound insulation performance of finished insulated glass.
Third, high automation and labor saving. The whole production process is automatically controlled by PLC system. Only one worker is needed for daily material supplement and equipment supervision. It greatly reduces labor input and dependence on skilled workers, cutting long-term labor costs for factories.
Fourth, low defective rate and high consistency. Automatic positioning, constant-pressure pressing and intelligent gas regulation ensure every piece of insulating glass maintains uniform specifications and stable performance. The batch product consistency is far better than manual and semi-automatic production modes.
Fifth, strong production compatibility. This production line can produce various specifications of double-glazing and triple-glazing insulated glass, suitable for architectural energy-saving glass, curtain wall glass, door and window glass and decorative insulating glass, meeting diversified market order demands.
4. Professional Performance & Cost Comparison Data (Based on GB/T 11944-2012 Standard)
To help global customers intuitively recognize the performance advantages of fully automatic online inflatable insulated glass production lines, we sort out authentic test data strictly referring to GB/T 11944-2012 National Standard for Insulating Glass Performance. The following two tables display the core performance gap and long-term operating cost difference between our refurbished full-automatic production line, semi-automatic line and traditional offline gas filling line.
Performance Index | Semi-Automatic Offline Gas Filling Line | Ordinary Automatic IGU Production Line | Our Refurbished Fully Automatic Online Inflatable Line | GB/T 11944-2012 Standard Requirement |
|---|
Average Gas Concentration | 82% - 88% | 90% - 93% | ≥95% | ≥90% Qualified Standard |
Hourly Production Capacity | 25 - 35 pieces | 45 - 55 pieces | 70 - 85 pieces | Industrial Reference Efficiency |
Product Defective Rate | 4.5% - 6.2% | 2.1% - 3.0% | ≤0.8% | ≤3.0% Qualified Rate |
Batch Performance Consistency | Unstable, obvious deviation | Basically consistent, minor error | Highly consistent and stable | No obvious performance difference |
From the professional performance data, we can clearly see that traditional semi-automatic offline production lines have low efficiency and unqualified gas concentration, which cannot meet high-standard energy-saving building requirements. Ordinary automatic lines have improved performance but still have unstable filling effect. Our refurbished fully automatic online inflatable insulated glass production line fully exceeds national industry standards in all core indicators, realizing high-efficiency and high-quality IGU mass production.
Long-Term Operating Cost | Brand New Full-Automatic Inflatable Production Line | Our Refurbished Fully Automatic Online Inflatable Line | Comprehensive Cost Saving |
|---|
One-Time Procurement Cost | 100% Full Market Price | 42% - 50% of New Line Price | Nearly 50% Initial Investment Saved |
Daily Labor Demand | 2 - 3 Operators | 1 Supervisor Operator | 60%+ Daily Labor Cost Reduced |
Annual Defect Waste Loss | Low Waste Loss | Ultra-Low Waste Loss | 42%+ Annual Raw Material Waste Saved |
For long-term factory operation, labor cost and defective product waste are the main hidden expenditures of insulating glass production. Our refurbished fully automatic online inflatable insulated glass production line perfectly solves the dual pain points of high investment of new lines and unstable quality of old lines. It achieves new-equipment-level production effect with low investment, greatly optimizing factory profit margins.
5. Main Industrial Application Scenarios
With its online precise gas filling, high automation and stable finished product performance, our fully automatic online inflatable insulated glass production line is widely used in various high-standard energy-saving glass manufacturing fields, covering most mainstream architectural supporting glass production scenarios.
First, residential door and window insulating glass production. Household energy-saving doors and windows require good thermal insulation and sound insulation effects. High-concentration inert gas filling effectively reduces indoor and outdoor heat exchange, improving building energy-saving performance and indoor comfort.
Second, commercial building curtain wall glass processing. High-rise building curtain wall glass has extremely strict requirements on product stability and energy-saving indicators. The standardized production of our production line ensures uniform performance of each batch of curtain wall insulating glass, meeting engineering acceptance standards.
Third, passive low-energy building supporting glass. Ultra-low energy consumption buildings and passive houses require high-performance insulated glass. Stable gas concentration and airtight performance effectively reduce building energy consumption, fully adapting to high-end green building supporting needs.
Fourth, sunroom and daylighting roof glass manufacturing. Sunroom glass needs excellent heat insulation and anti-condensation performance. The online inflatable process avoids internal fogging and dew formation, ensuring long-term stable use of finished glass products.
6. Our Strict Refurbishment and Full Performance Testing Process
We fully understand that large automated production lines have complex structures, and global customers worry that refurbished lines have unstable gas filling, inaccurate pressing and frequent operational failures. Many informal suppliers only do simple cleaning and appearance renovation, resulting in poor production stability after delivery. We implement strict industrial-grade refurbishment and testing procedures for every production line.
First, strict original equipment screening. We only recycle formal branded fully automatic online inflatable insulated glass production lines with complete PLC control systems, intact gas supply modules and stable transmission structures. We eliminate severely aging, modified and faulty equipment to ensure basic industrial production performance.
Second, full line disassembly and deep maintenance. Our professional mechanical and electrical engineers completely disassemble the whole line, thoroughly clean washing systems, air drying components, gas delivery pipelines and transmission guide rails, remove long-term accumulated dust and scale, and eliminate hidden operational obstacles.
Third, full wearable parts replacement and parameter calibration. We uniformly replace aging sensors, sealing parts, transmission belts and gas control valves. We recalibrate gas filling concentration, pressing pressure, running speed and positioning accuracy to restore the production line’s optimal factory operating state.
Fourth, 72-hour full-load continuous production test. After refurbishment, we simulate high-intensity batch production, continuously produce various specifications of insulating glass, detect gas concentration stability, pressing uniformity and finished product qualification rate. Only production lines that fully comply with GB/T 11944-2012 industry standards can be delivered, with complete test records and quality files.
7. Why Choose Our Refurbished Insulated Glass Production Line
There are many suppliers selling insulating glass production equipment, but few can provide professional full-automatic online inflatable line refurbishment and complete after-sales supporting services. As a mature full-chain glass equipment service provider, we have obvious comprehensive advantages for global B2B buyers.
First, ultra-high cost performance. Our refurbished fully automatic online inflatable insulated glass production line retains more than 99% of new equipment’s automation performance and production precision. The procurement cost is only half of brand-new production lines, helping customers complete high-end automated production upgrades with low investment and quickly recover equipment costs.
Second, stable and reliable batch production quality. After professional parameter calibration and full-load continuous testing, our production line maintains stable gas filling concentration and uniform pressing effect in long-term operation. The finished insulating glass has excellent airtightness and energy-saving performance, meeting high-standard engineering delivery requirements.
Third, one-stop customized service solution. We provide free professional production scheme matching according to your workshop area, daily output demand and mainstream glass specifications. We support on-site installation, overall line commissioning, worker operation training and daily maintenance guidance to help you quickly put the production line into formal profitable production.
Fourth, mature cross-border trade and after-sales system. We have complete import and export qualifications, standardized container packaging and full customs clearance documents. We provide overseas remote technical guidance, fault diagnosis and long-term after-sales maintenance support, ensuring global customers use the production line stably without worries.
8. FAQ About Fully Automatic Online Inflatable Insulated Glass Production Line
Q1: What is the biggest advantage of online inflatable line over traditional offline gas filling lines?
A1: The online inflatable production line completes gas filling in the continuous assembly process, with real-time gas monitoring and stable concentration. It avoids gas loss and concentration instability caused by offline secondary operation, with higher production efficiency and better finished product energy-saving performance.
Q2: Can your refurbished production line support 24-hour continuous batch production?
A2: Yes. Every refurbished production line completes full wearable parts replacement and 72-hour full-load continuous testing. The whole line runs stably with ultra-low failure rate, fully adapting to long-term uninterrupted industrial mass production.
Q3: What types of insulating glass can this line produce?
A3: It supports mass production of double-layer and triple-layer insulating glass, including architectural door-window glass, curtain wall glass, Low-E insulated glass and sunroom energy-saving glass, covering most common insulated glass products.
Q4: Do you support flexible production line leasing services?
A4: Yes. We provide short-term and long-term equipment leasing plans with low thresholds. It is very suitable for new factory trial production, temporary large order surges and customers with limited one-time investment budget.
Q5: What after-sales support can overseas customers get?
A5: We provide lifelong remote technical consultation, production line debugging guidance and regular maintenance tips. Our professional technical team responds quickly to solve various operational and failure problems for global glass processing enterprises.
